Flip-Chip FC250


Flip-Chip FC250
FlipChip1


Contact :


Sylwester BARGIEL
TEMIS Sciences Building
03 81 66 63 02 (Office)
03 63 08 23 10 (Packaging Area)
sylwester.bargiel@femto-st.fr


Location :


TEMIS cleanroom
Characterization and Packaging Area



Principle :


1/ Flip-Chip mode :

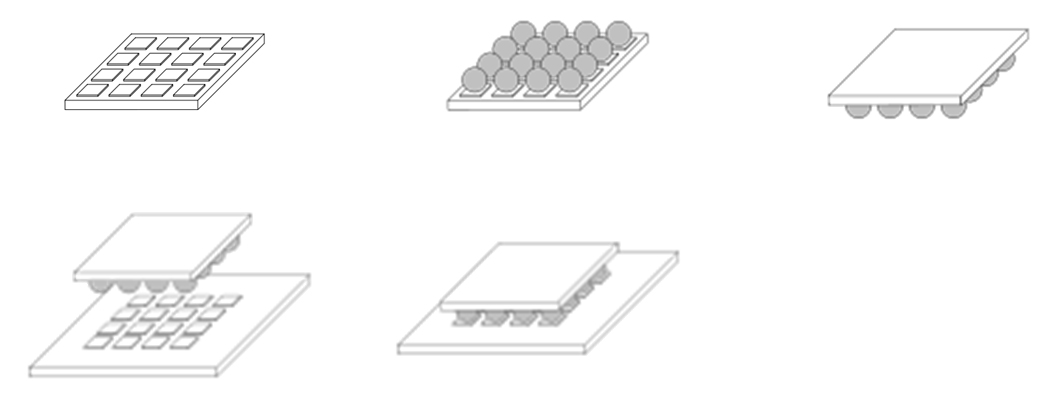

Flip-Chip technology corresponds to a direct electric connection of a chip face including the components, turned down (that is why it is called « flip ») on substrates or printed circuits by means of gold balls called Bump. The bonding is achieved by thermal compression.

FlipChip2



The advantages related to this technology mainly come from :

- the performance increase
- the size: the whole surface of the chip can be used contrary to a wire connection with which the only perimeter is useful
- the robustness: it is the most robust mechanical interconnection method.



2/ Hot-Embossing mode :

On the same principle than before, after thermal compression, the chip is taken back by the machine’s arm, leaving its pattern in the substrate with which it was in contact.

FlipChip3



3/ Dispenser mode :

The precision displacement of the chuck, combined with the dispense needle system fitting the FC250 upper arm, enables to dispense, depending on the predefined pattern, all products having an appropriate viscosity (glue, resist).



Technical characteristics :

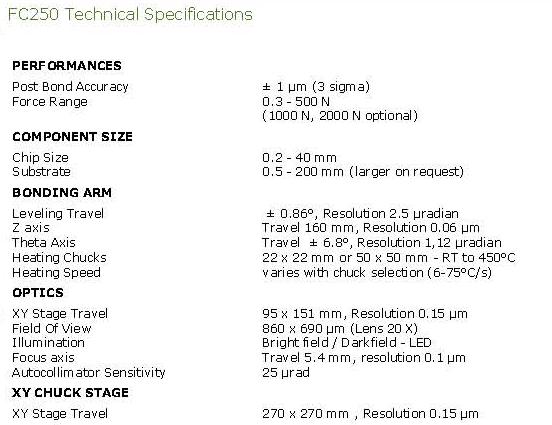

The main characteristics are given in the following document FC250 Datasheet.

FEMTO-ST Institute has purchased a half-module of the FC250 version (from SET society) which, after modification, enables a manual process control more adapted to research developments. The alignment accuracy after bonding is +/- 1µm.



Comment :

This equipment is not self-service: a request on the cleanroom website is required.
